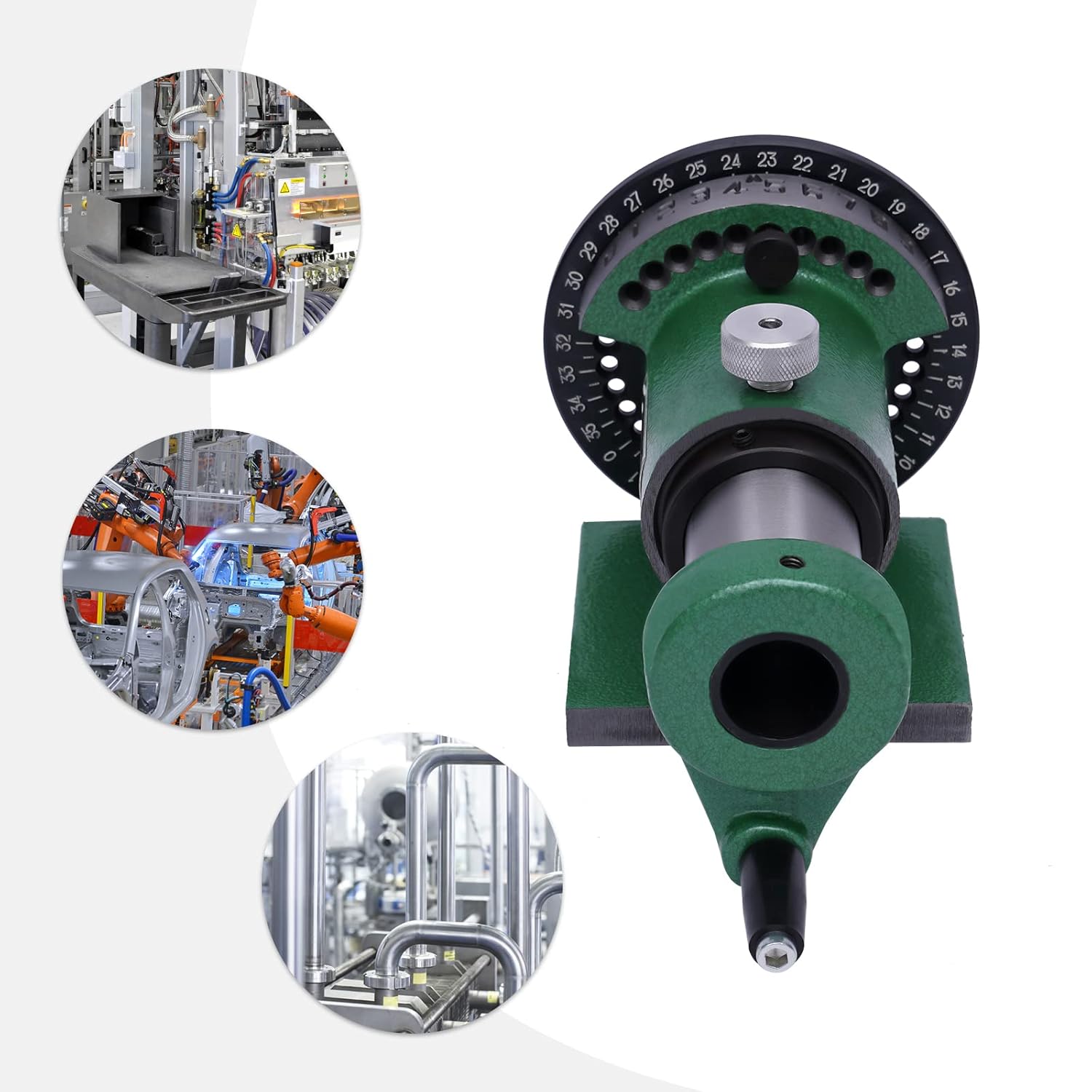

5C Spin Indexer PF70-5C | Vertical/Horizontal Indexing Fixture for Milling & Drilling | 1-1/8" Collet Capacity | ±4' Precision

Description:This spin indexing fixture is made of high-quality cast steel and is very strong and durable. It will help you to operate precisely and be your right-hand assistant for machining slots for milling cutters, cutting teeth for gears, curved milling slots, or drilling a bolt-hole circle around the circumference of a part. It is designed for milling, drilling, fixture boring and many common workshop applications.Other Features:【Smooth Surface】This spin indexing fixture is made of heavy-duty metal and finely polished, which shows a smooth surface. Therefore, it will not easily damage other materials and be easier to clean.【Handle】This spin indexing fixture uses an ergonomic handle, so it becomes easier for you to grip.【Easy to Adjust】You just need to operate the control handle and adjust it to the desired position, which makes it easy and convenient to use.【Easy to Carry】This spin indexing fixture is very compact and portable. Therefore, if you want to use it on a different milling tool, you can easily move it to the machine you want.【Guaranteed Customer Service】We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.Specification: Material: Cast SteelColor: GreenModule: PF70-5CIndexing Accuracy: ± 4'Capacity for Standard 5C Collet: 1-1/8"Height of Center: 70mm/2-3/4"Spindle Travel: 2-1/16"Spindle Cone Radial Runout: 0.010mm/0.0004"The Radial Center of the Spindle is Bouncing (25mm/0.98" From the Spindle End): 0.03mm/0.0012"The Parallelism of the Center Line of the Spindle to the Bottom Surface: 0.02mm, 0.0008''Product Size（L*H）: 23.6*13.4cm/9.29*5.28''Package Size: 22*14*14cm/8.66*5.51*5.51''Gross Weight: 5.8kg/12.79lbsPackage Included:1*Spin Indexing Fixture1*English ManualAll Accessories for Use

• 【Dual-Position Machining】Switch between vertical/horizontal setups for circumferential drilling, gear teeth cutting, or slot milling – no extra fixtures needed.
• 【Precision Engineered】360° engraved scale with ±4 arcmin (±0.066°) accuracy ensures repeatable indexing for critical tolerance work.
• 【Powerful 5C Collet System】Holds rods up to 1-1/8" diameter with screw-controlled clamping force – no workpiece slippage.
• 【 Industrial-Grade Rigidity】The cast steel spin indexing fixture has good casting properties such as milling vise, vibration damping properties and high heat resistance. Therefore, it is very strong and durable.
• 【Workshop-Ready Stability】It has a wider base design, so it fits more closely to the countertop. It will give strong support to the long metal rods you want to handle, providing a more stable working condition.
