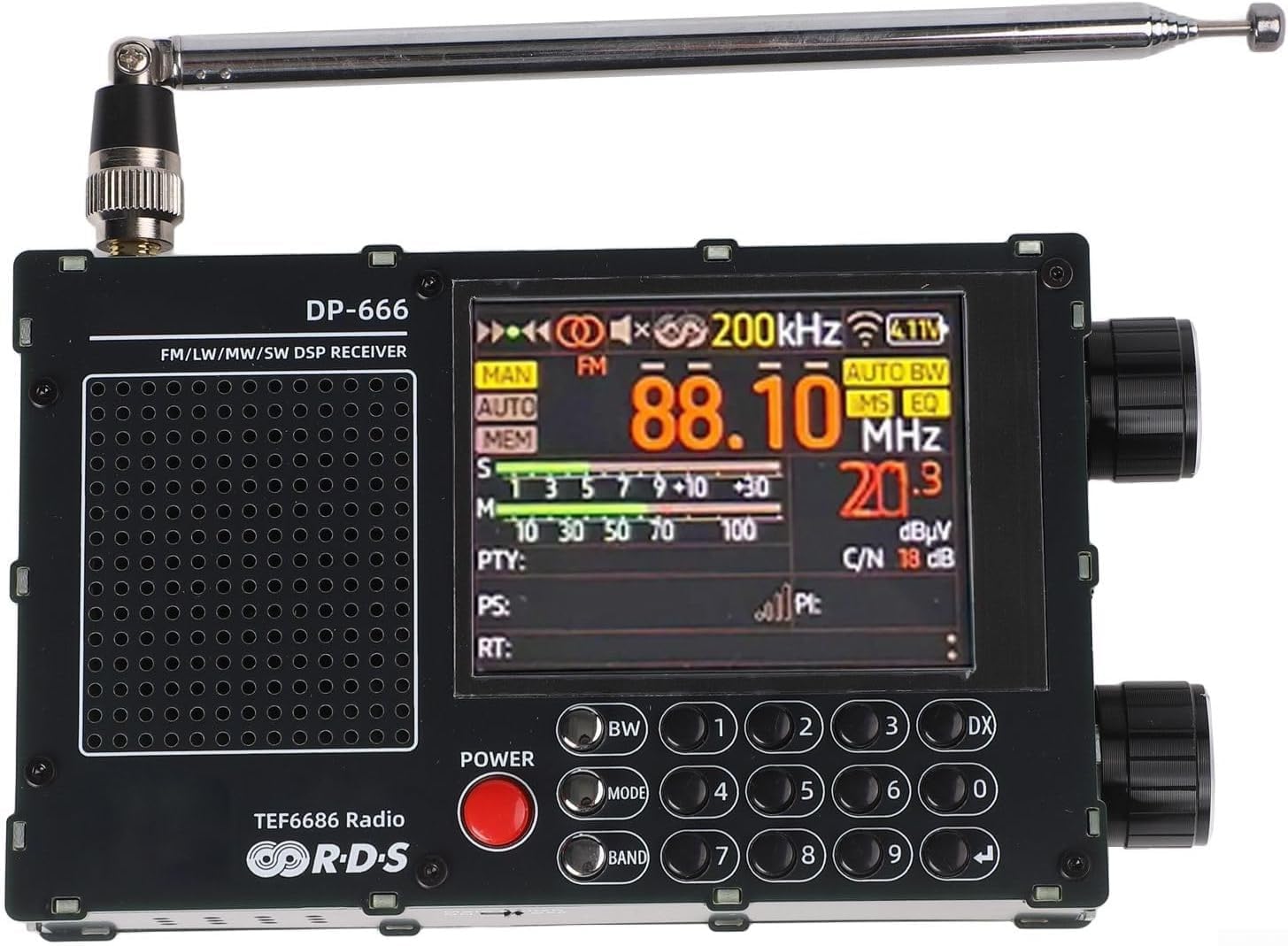

DP-666 TEF6686 Full Band Radio, FM AM Shortwave Radio RDS, 2.8Inch Resistive Touch LCD Color Screen, Portable-High-Sensitivity-Travel-Radio(white)

fontfont Features:1. This is a high-sensitivity radio based on high-performance automotive-grade TEF6686 chip, with excellent selectivity and ultra-high sensitivity. This automotive for DSP tuner has a wide range of functions and advanced algorithms (CEQ, EMS, and PACS, noise canceller...), (software for defined radio) signal processing, especially in improving multipath, adjacent frequency interference, weak signal processing and noise elimination.2. This is a radio built on the open source project TEF6686_ESP32 of PE5PVB. In addition to listening to radio stations, the project also supports a wealth of advanced features, such as: almost all RDS (Radio Data System) data display, automatic/manual radio station scanning, squelch function, battery voltage display, changeable themes, multi-language, radio station presets, .3. We redesigned the circuit board based on the mature TEF6686 front-end receiving circuit, and equipped the DP-666 with a 2.8-inch resistive LCD color based on the open source project. While the portability of the machine, it can display rich RDS information (RDS information requires local radio support); a numeric keyboard has been added to facilitate users to quickly input frequencies; a large-capacity 5000mAH battery supports longer standby time.In short, I hope this portable high-sensitivity travel radio will satisfy you!PE5PVB project: https://github.com/PE5PVB/TEF6686_ESP32DP-666 project: https://github.com/flyoob/TEF6686_ESP32Tunertechnology：DABSpecifications:Part name: DP-666 radioMaterial: PCB acrylic boardColor: white, yellow, blackSize: as shownPackage contents:1. Host *1 (3.7V/5000mAh lithium battery installed)2. High-quality telescopic antenna with for SMA connector *13. USB-A to TYPE-C 1 meter data cable *14. Storage bag *1

• [PACKAGE CONTENTS] Box contains DP 666 host (7V/5000mAh battery installed), telescopic antenna with connector, 1 m USB-A to USB-C cable and a storage bag for easy transport, making this full band radio ready to use out of the box.
• [FULL BAND RECEIVER] Supports FM, AM and shortwave reception with RDS display for station text and data, bringing broad radio coverage and searchable broadcasts to travelers and radio enthusiasts.
• [ADVANCED PERFORMANCE] Built around the TEF6686 chip and tuning algorithms (CEQ, EMS, PACS and noise cancellation), the radio delivers exceptional sensitivity and selectivity for weak signals and crowded bands.
• [SMART USER INTERFACE] 8 inch resistive color LCD shows rich RDS info and menus; numeric keypad, auto/manual scan, presets, squelch and battery voltage readout make tuning and operation fast and precise.
• [PORTABLE POWER FOR TRAVEL] Lightweight PCB and acrylic housing with 5000mAh battery provide extended listening and standby; USB-C charging keeps the radio ready for outdoor trips, commutes and listening.
