Thermal Imaging Camera, Infrared Thermal Imager 256*192 Pixel Temperature -20°C~550°C Thermal Imaging Camera Thermometer For Repair
Product details
| Management number | 238224280 | Release Date | 2026/07/11 | List Price | US$249.76 | Model Number | 238224280 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Temperature Range:-20~550(-4°F~1022°F)</p><p>Accuracy:±2/±2% (whichever is greater)</p><p>Resolution:0.1</p><p>IR Resolution:256 * 192 pixel</p><p>Response Wave Band:8~14m</p><p>NETD:<50mK</p>

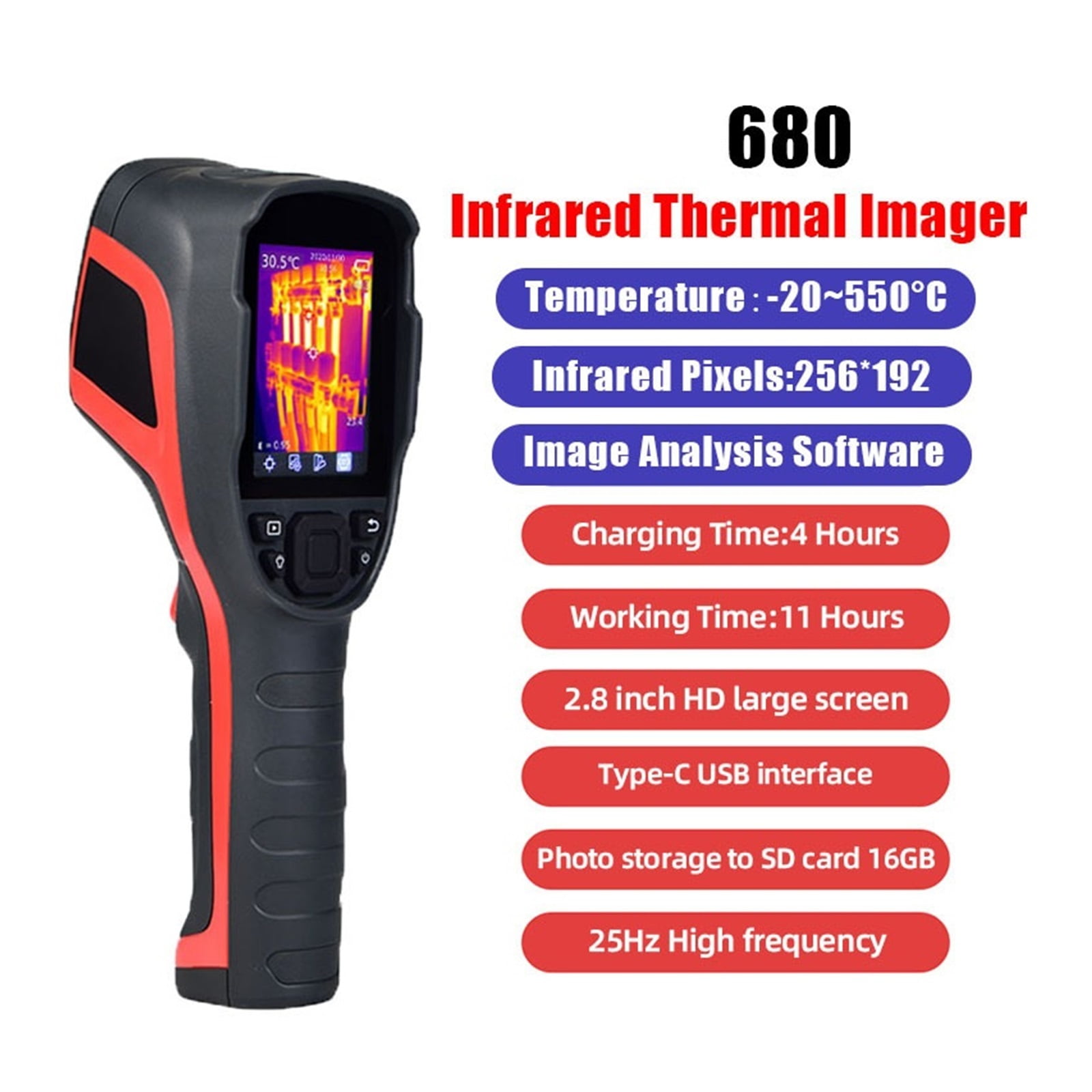

- Infrared Thermal Imager 256*192 Pixel Temperature -20°C~550°C Thermal Imaging Camera Thermometer For Repair
- Features
- Temperature Range:-20~550(-4°F~1022°F)
- Accuracy:±2/±2% (whichever is greater)
- Resolution:0.1
- IR Resolution:256 * 192 pixel
- Response Wave Band:8~14m
- NETD:<50mK
- Frame Frequency:25Hz
- FOV(Field of View):56°* 42.2°
- IFOV:3.8mrad
- Display:2.8" LCD (320*240)
- Color Palette:Black, white hot, iron red, rainbow, rainbow HC, black hot, yellow purple
- Image Mode:Thermal image, fusion, PIP(picture to picture), digital camera(visual light)
- Charging Time:4 hours
- Working Time:11 hours
- Working Environment:-10°C~50, 10~95%RH(non-condensing)
- Storage Temperature:-20°C~60
- Protective Grade:IP54
- Drop-proof:2m
- Battery:3.6V 4500mAh lithium battery

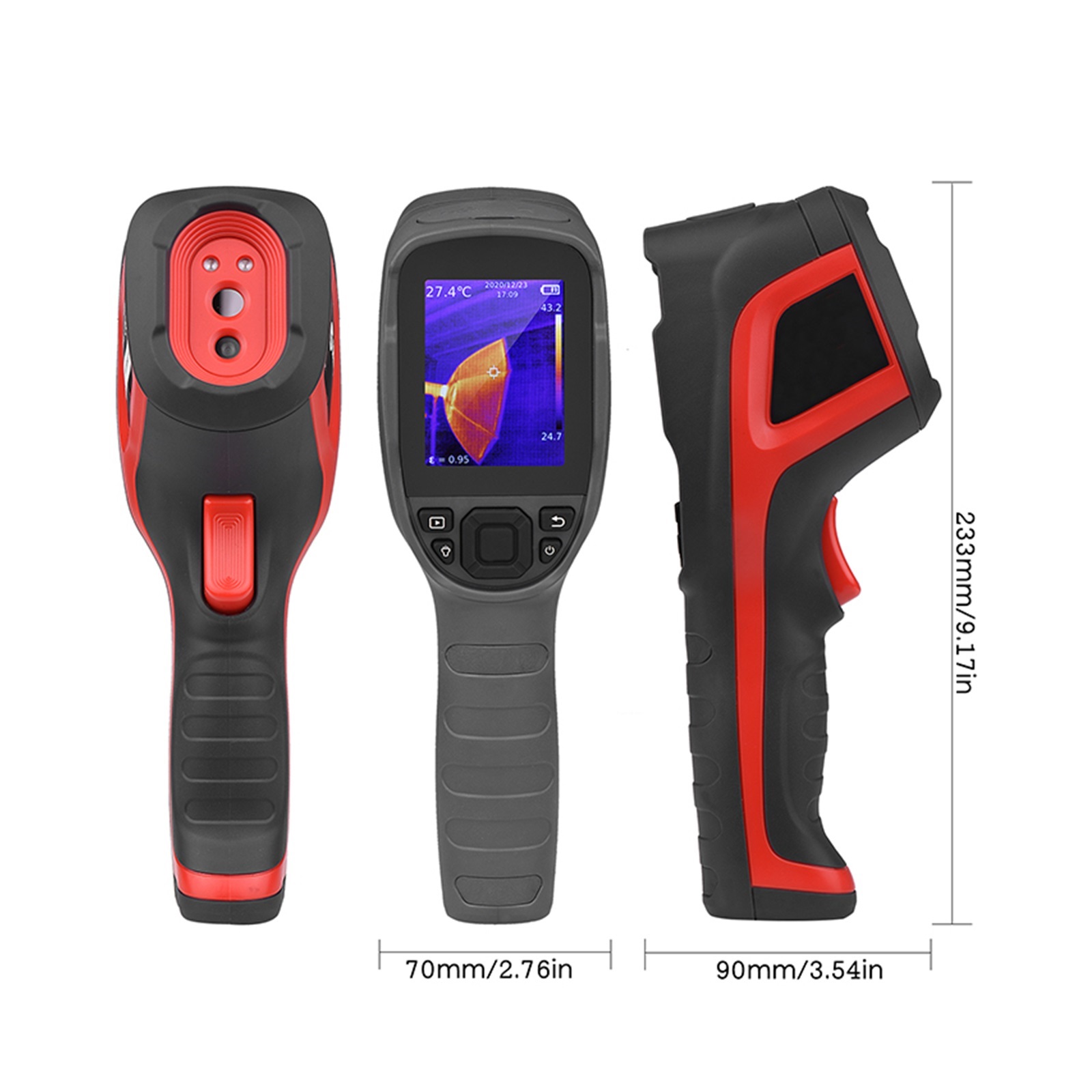

- Item Size:233 * 70 * 90mm / 9.17 * 2.76 * 3.54in
- Item Weight:525g / 18.53oz
- Related Products:
- thermal camera,thermal imager,thermal imaging camera,infrared thermal imager,thermal imaging,infrared camera,infrared thermal imager camera,thermal vision,infrared thermometers,infrared water leak detector,thermal gunthermal imagers,infrared thermometer gun,infrared thermometers
| Resolution | 320 x 240 |
|---|---|
| Brand | Eugene Color |
| Screen size | 2.8" |
| Power type | Battery |
| Assembled product height | 3.54" |
| Weight | 17.65 oz |
| Display | LCD |
| Color | 680 |
| Has written warranty | No |
